Enhanced IO - Standalone Data Logging
The standalone data logging capability of the MPVI Pro unit allows
scanning of the vehicle without the use of a laptop.
To setup the standalone datalogging feature for the first time on a
new vehicle or when switching from another vehicle follow the steps
below or watch our Standalone Datalogging Demo:
- Key your vehicle into
the run position.
- Connect your
interface to your vehicle's obd2 port and to your laptop's usb
port.
- Open VCM Suite
Scanner and open your Table(Primary) Display.
- Click the connect
icon.
- Add or delete any
PID's you want.
- Save your config for
later use(optional).
- Click Scan-MPVI Pro
Data Logging.
- Click Write
Config-Yes.
- Unplug the USB
connector from your laptop.
- Start vehicle if not
already running.
- Press and Hold the
Record button for ~2 seconds to start recording.
- Press and Hold the
Stop button for ~2 seconds when your finished to stop
recording.
You must always use the stop button to halt the logging
process.
Powering down the unit while it is recording or while the Busy LED
is lit during a stop request will cause the current log to become
corrupted.
The interface can store up to 32 individual logs if they are small,
or about 80 minutes of data.
This all varies on the vehicle you are connected to and the number
of bytes per frame you are recording.
To insert a marker while recording, press the Record button for 1
second. The Busy light will blink indicating a marker has been
inserted into the recorded data.
After a marker has been added there is a 2 second delay before you
can add another marker.
- All button sequences take 1 seconds to validate.
- When not logging, hold the record and stop buttons for 2
seconds to erase the logs without the laptop. The Busy LED will
blink until all logs are erased.
- The Record light will blink when you have used 90% of the
memory, or have about 6 minutes of space for data left on the
interface.
- The ERR light will flash after a record request if the
interface could not establish communications with the vehicle. The
configuration setup is vehicle specific and may require you to
program a new configuration for the vehicle you are logging.
- The ERR light will light solid if a configuration is not
programmed, the interface is full, or a corrupt log location has
been found. Use the software to determine.

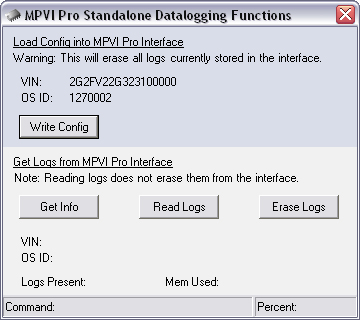

This will write your current table display configuration into the
MPVI Pro unit.
Be aware that it will erase any current logs you have saved in the
unit.
You can use user defined AUX inputs with your configuration as
well.
Any configured outputs will not be stored into the config of the
MPVI Pro unit.
Only inputs are recorded during standalone data logging, outputs
are not used.
This will report the current VIN, operating system ID, number of
logs present and the percentage of log data mem used.
This will read all logs from the interface. No logs will be erased
by reading them.
This will erase all logs currently stored in the interface. Your
config will not be erased.
